Can Coating Machine

Wet Lacquer Coating Machine and Side Stripe Powder Coating System

Can Coating Machine - Seam Protection System

Seam coating machine is used to protect the side seam from corrosion, rust and pollution. The seam coater can be deigned as side stripe powder spray coating system, or wet lacquer roller coating system. Whether the interior or exterior seam, totally can be protected by the can coater.
Wet Lacquer Coating Machine GC-L

Wet Lacquer Coating Machine GC-L

Features:

  • Perfect weld seam protection

  • Clean and low lacquer consumption

  • Higher seam-coverage quality thanks to more precise coverage limitation

  • Homogenous distribution of liquid lacquer

  • Good coverage in the seam overlap area

  • Adjustable liquid lacquer quantity

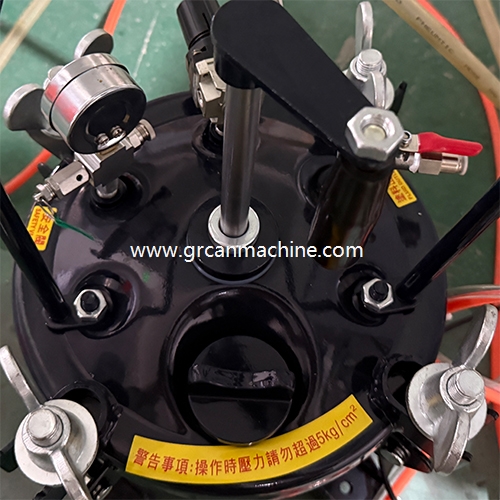

  • Lacquer reservoir is available to supply lacquer automatically

  • Inverted bottle system is available

  • Compact and user-friendly

  • Suspension type belt conveying, stable conveying for can body, no scratch on can body

  • Bi-directional adjustment for the width of conveying belt, suitable for a variety of can sizes


Specifications:

Speed: 20-100m/min
Can diameter: 50-176mm, 220-300mm
Can height: 50-400mm
Power source: 380V±5%   50Hz
Total power: 1kw
Weight: 350kg
Dimensions (L×W×H): 2050x800x1600mm

Side Stripe Powder Coating System GC-P

Side Stripe Powder Coating System GC-P

Features:

  • Homogenous distribution of powder

  • Easy and precise setting of powder strip width and thickness

  • Combined or separate system are both available

  • Flexible and versatile connector for different welders

  • PLC and touch screen control


Specifications:

Can diameter: 52-400mm
Speed: 50-100m/min
Strip width: 6-15mm
Can height: 55-550mm
Sheet thickness: 0.15-0.5mm
Total power: 2.3kw
Compressed air: 65Nm3/h

Flexible Collocation Solution

Flexible Collocation Solution

  • Inside powder seam protection system for top or bottom weld (for seam up or seam down welder)

  • Inside lacquer spray system for top or bottom weld (for seam up or seam down welder)

  • Inside wet lacquer roller coating system for top or bottom weld (for seam up or seam down welder)

  • Outside lacquer roller coating system for top or bottom weld (for seam up or seam down welder)

  • Outside liquid lacquer drip coating system for top weld (for seam up welder)

  • Outside lacquer spray system for top weld (for seam up welder)


Outside Can Coating Machine by Drop

Outside Can Coating Machine by Drop

Specifications:

Speed: 20-100m/min
Can diameter: 50-176mm, 220-300mm
Can height: 50-400mm
Power source: 380V±5%   50Hz
Total power: 1kw
Weight: 350kg
Dimensions (L×W×H): 2050x800x1600mm

Seam Coating Machine - Can Coater

inside and outside seam coating system for canbody side seam protection

Powder Coating System

For the food cans or water base solvent container, it is better to apply inside powder coating on the inner weld seam. GR Can Making Machine is the leading developer for side stripe powder coating system in China. Our powder coating machine can be designed as integrated with fresh powder drum evacuator or independent of it. The powder coater can match high speed welder or low speed automatic welder as well as back feeding manual welder. The powder stripe before fusing is even and regular, the coating result is smooth and durable. The thickness of powder coating layer is adjustable, the powder coating arm can cooperate with exterior lacquer coating machine well, and the quick change connector can be fixed on the lower arm of welder.


The powder coating system consists of

1 Inside powder coating arm of welded seam strip spraying powder coating machine

The coating arm conveys and atomizes powder, corona discharge needle of internal high voltage module charges the powder, so that the powder is evenly absorbed in the welding seam of cans.

2 Powder supply unit of welded side seam powder coating machine

The powder level is equipped with a capacitive sensor. When the powder level is insufficient, the large powder pump will be started to deliver the powder from the filter bucket to the material tank.

3 Cyclone filter of welded seam powder coater

The cyclone filter adopts an advanced intermittent rotating cleaning mechanism, which can ensure obvious cleaning effect, which is much better than conventional cleaning in any form, and has low noise and small air pressure fluctuations.

4 Powder tank of side seam powder coating system

The powder tank is a stainless steel powder container with a fluidized bed for adding new powder. All powder for each shift is added to the bucket, reducing the frequent addition of powder by the operator.



Classifications

GR produce two types of welded seam strip spraying powder coating systems, combined powder spraying machine and divided powder spraying machine.



Applications

The powder spraying system for welded side seam can be used for food cans and conical pails.



Customize your side stripe powder coating system

1 Inside diameter of your tin cans or conical pails

2 Height of your cans or pails

3 Production speed of your can making production line


Wet Lacquer Coating System

After welding, the inner and outer seams should be coated by durable protective layer, then the weld seam will not be rusty. That is why GR Can Making Machine develops a series of seam protection systems. Wet lacquer seam coating machine is random collocation for various requirement, the seam inside can be roller coating or spray coating, the seam outside can be roller coating, spray coating or drop coating. The side seam coating machine is versatile for weld seam of food cans, beverage cans and aerosol cans as well as industrial packaging containers. The can coater is easy to adjust and low consumption of lacquer.


The side seam lacquer coating machine consists of

1 Inside coating arm of side seam lacquer coater

The inside coating arm can be designed as spraying coating arm or roller coating arm, depending on the requirement of can maker

2 Magnetic conveyors of side seam lacquer coating system

The magnetic conveyor sucks the container body under the belt, the inside of welding seam touches the coating roller with lacquer or is sprayed by the nozzle. The outside of welding seam touches the coating roller with lacquer or is coated by the drops from the lacquer bottle.

3 Control panel of welded seam lacquer coater

The control panel can adjust the speed, height, angle of the welded seam lacquer coater.



Classifications

According to the coating solution, the lacquer coating machine is flexible, for the inside coating, GR can design it as spray or roller coating, for the outside coating, GR can design it as roller coating or drop coating. The can manufacturer can select the suitable device for free combination.

1 Inside spray coating arm

2 Inside roller coating arm

3 Outside roller coating

4 Outside drop coating



Applications

GR coating machine can be used widely in metal can manufacturing industry, to protect the welded side seam from corrosion and rust.

1 General line can

2 Three piece food can

3 Aerosol can

4 Conical pail or chemical pail

5 Necking pail or solvent pail

6 Paint can



Customize your welded seam lacquer coating machine

GR will design and manufacture the coating machine base on your requirement, we need to know the details.

1 The contained things inside the metal cans

2 The inside diameter and height of the tin cans

3 The production speed of the tin container production line
