Canbody Welder

Can Body Welding Machine and Pail Body Welding Machine

Can Welding Machine - Can Welder

Can welding machine is used to suck and roll the can body blanks, through Z-bar to control the overlap, and weld blanks as can bodies, also named as can body welding machine or welding bodymaker. Because the can body welder employs resistance welding solution, it is also named as seam welder or seam welding machine. The canbody welder can connect to the seam coating machine through lower arm, then the cans from canbody welding machine will be conveyed horizontally and smoothly. The metal can welding machine is widely used for various size of metal containers by changing over calibration unit, then the tin can welder is flexible and applied widely.
GR Can Body Welder

GR Can Body Welder

GR Experience

  • Considerable expertise and deep professional knowledge on metal soldering

  • Advanced and worldwide proven technology

  • Senior veteran of can welding machine industry


Future-Oriented Modular and Flexible Design

  • Flexible design concept, tailor made solution

  • Modular design enables the technology upgrade and kit conversion


High Efficiency in Production

  • Easy and fast format changeover

  • Fully automatic and easy to connect with slitter and coater


Easy Operation and Maintenance

  • Minimized change parts

  • Full access to all welder key components therefore eases the maintenance

  • Touch screen panel control and trouble shooting

  • Former format parameters are restorable to reduce resetting/adjustment time


Substantial Saving

  • Less wear and tear

  • Fewer spart parts to store

  • Less scrap


High Quality Welding Seam

  • Double profiling unit for copper wire to ensure good contact during welding


Versatile

  • Suitable for various types of sheet material such as tinplate, stainless steel or TFS

Can Welding Machine GW-300

Can Welding Machine GW-300

Features:

  • Touch panel, man-machine interface

  • Automatic fault detection, automatic alarm and troubleshooting system

  • Equipped with Omron, Mitsubishi, Schneider, SMC, AirTAC etc. high-quality components

  • Electronic static adjustable variable-frequency inverter power supply

  • Water-cooled welding transformer, adjustable in current strength and frequency continuity

  • Double profiling unit for copper wire

  • Double sheet detection


Options:

  • Oxid-free weld seam, gas-shielded welding, nitrogen protection

  • Discon, mercury free welding rollers


Specifications

Type:  GW-300
Production Speed:  max. 300cpm
Canbody Diameter:  52-153mm
Canbody Height:  70-320mm
Sheet Thickness:  0.16-0.3mm
Copper Wire Diameter:  1.24-1.5mm
Welding Speed:  45m/min

Metal Can Welder GW-200

Metal Can Welder GW-200

Type:  GW-200
Production Speed:  max. 200cpm
Canbody Diameter:  52-190mm
Canbody Height:  70-320mm
Sheet Thickness:  0.16-0.3mm
Copper Wire Diameter:  1.38-1.5mm
Welding Speed:  35m/min

Welding Bodymaker GW-150

Welding Bodymaker GW-150

Type:  GW-150
Production Speed:  max. 150cpm
Canbody Diameter:  52-105mm
Canbody Height:  70-320mm
Sheet Thickness:  0.16-0.3mm
Copper Wire Diameter:  1.24-1.5mm
Welding Speed:  26m/min

Seam Welding Machine GW-120

Seam Welding Machine GW-120

Type:  GW-120
Production Speed:  max. 120cpm
Canbody Diameter:  52-150mm / 65-180mm
Canbody Height:  70-330mm
Sheet Thickness:  0.16-0.3mm
Copper Wire Diameter:  1.38-1.5mm
Welding Speed:  24m/min

Metal Can Seam Welder GW-80

Metal Can Seam Welder GW-80

Type:  GW-80
Production Speed:  max. 80cpm
Canbody Diameter:  52-150mm / 65-180mm
Canbody Height:  70-330mm
Sheet Thickness:  0.16-0.3mm
Copper Wire Diameter:  1.38-1.5mm
Welding Speed:  18m/min

Can Welder (Top Sucking) GW-80

Can Welder (Top Sucking) GW-80

Type:  GW-80
Production Speed:  max. 80cpm
Canbody Diameter:  52-150mm / 65-180mm
Canbody Height:  70-330mm
Sheet Thickness:  0.16-0.3mm
Copper Wire Diameter:  1.38-1.5mm
Welding Speed:  18m/min

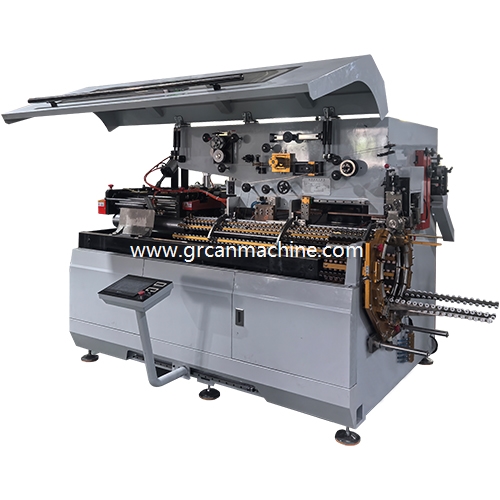

Drum Welder GW-50

Drum Welder GW-50

Type:  GW-50
Production Speed:  max. 50cpm
Canbody Diameter:  200-300mm
Canbody Height:  180-450mm
Sheet Thickness:  0.25-0.6mm
Copper Wire Diameter:  1.38-1.7mm
Welding Speed:  36m/min

Pail Welder GW-35

Pail Welder GW-35

Type:  GW-35
Production Speed:  max. 35cpm
Canbody Diameter:  200-300mm
Canbody Height:  180-450mm
Sheet Thickness:  0.25-0.6mm
Copper Wire Diameter:  1.38-1.7mm
Welding Speed:  18m/min

Multi Language Control System of Canbody Welder

Multi Language Control System of Canbody Welder

GR can body welders employ multi language to guide the operator, after entering into the touch screen, you can select language on the welcome interface. When you order the machines from us, you also can customize the language you need before manufacturing. Our engineers will design the system interface base on your requirement.

Low Noise of Roll Forming Station

Low Noise of Roll Forming Station

On our latest version of can body welding machines, the roll forming station is designed as gearless, independent transmission of upper and lower shafts by synchronous belt, to replace the conventional gear structure. This concept comes along with easier adjustment, better performance and greater reliability. When the welder is running, the noise is very low. Better acoustics reduce noise pollution and protect the operator's auditory system. This creates a pleasant working environment, in turn, boosts machine operator productivity.

Intelligent Can Height: ICH System

Intelligent Can Height: ICH System

On our latest can body welding equipment, the horizontal pushing and feeding device is designed as "Intelligent Can Height" system (ICH system). The new design concept integrates the program, control panel, can pusher, can conveyor, infeed pawls and servo motors totally, to replace the crank mechanical parts. The welder operator just needs to click the touch screen to set the can height and select the infeed pawl position, then everything is complete. This innovative design noticeably simplifies the adjustment, saves time for format change and increases efficiency.

Exclusive Invention: Double Sheet Detector for Stainless Steel

Exclusive Invention: Double Sheet Detector for Stainless Steel

For the stainless steel material, it is different from the tinplate. The magnetism of stainless steel is not so strong as tinplate, the common double sheet detection solution on the market is useless, in order to solve the technology problem, our research and development team invested capital and technology and invented the special double sheet detector for stainless steel. It is widely used in water dispenser and other home device industry, and well proved by the practice of many customers. This type of stainless steel double sheet detector is only available from GR.

Double Profiler of Copper Wire in GR Canbody Welding Machine

Double Profiler of Copper Wire in GR Canbody Welding Machine

For the copper wire, it is necessary to profiled as flat and then can be used. On GR can welder, we design two times of profiling for copper wire, this ensures the smooth running and good welding quality. The double profiling design for copper wire is highly favored by canmakers.

Ceramic Profiler and Rodless Cylinder of GR Tin Can Welder

Ceramic Profiler and Rodless Cylinder of GR Tin Can Welder

For the speed higher than 300 cans per minute, our welders employ ceramic profiler to form the profile of copper wire before welding, this type of ceramic material is more endurable for high speed production. On this type of welder, the fist tension and cutting tension of copper wire employ rodless cylinder, the second tension of copper wire is equipped with cooling.

More than Bigger

More than Bigger

In metal packaging industry, some metal containers are big volume, such as conical pails, necking pails, steel drums, water heater storage tanks and square cans. For the big size products, the drum welder is not simply to lengthen size. The drum welding machine must be designed in an overall coordinated manner to accommodate the production of special large-format products. The stacks of big size metal sheets are heavy, we install additional front feeder before the welder, then the machine operator just need to push the stacks of sheet through rollers on the front feeder effortlessly, and the metal sheets are sucked from the top of the stacks. So the pneumatic and motor system must be stronger to support the heavy materials. In common, the big size sheets are thick, then the electric system must be powerful enough to output a stable current to be competent for welding, and the welding rollers and lower arms must be bigger than common size.

Gas Shielding

Gas Shielding

In order to prevent the weld seam from oxidation during welding, and get a beautiful weld seam, also improve the corrosion resistance of weld seam, the welder is possible to be equipped with gas shielding device. At the beginning of welding, the solenoid valve of the nitrogen system is connected, the nitrogen flows out from the cylinder and is sprayed to the weld seam through the gas shielding adapter. Please compare the nitrogen protection results in the picture.

Chiller for Welder CHIL-A

Chiller for Welder CHIL-A

Cool Capacity: 8500/33745 KCAL/BTV

Compressor power: 2.25Kw

Pump power: 0.375Kw

Tank capacity: 55LT

Voltage/frequency: 380v/50Hz

Dimensions: 1000*700*1050mm

Weight: 160Kg


Copper Wire for Three Piece Can Welding Machine

Copper Wire for Three Piece Can Welding Machine

In the can making industry, the production of three piece cans body needs the special copper wire for can body welder, the copper wire will be cut off during production but recyclable.

Canbody Welding Machine - Tin Can Welder

canbody welder and pailbody welder

Canbody welder plays an important role in 3 piece can production line for welded cans, the tinplate is rolled as round first, then formed the lateral seam by resistance welder. The level of resistance soldering technology affects the quality of can body side seam significantly. So this type of resistance welding machine is also name as tin can seam welder or seam welding machine. GR Can Making Machine specially produces fully automatic can body welding machine and back feeding manual welding machine for many years. Our can body welder just requires a minimal overlap then weld the seam overlap well. For the food cans or drink cans, the rolling station of can welder is designed as bottom-sucking, and for the paint cans or other general line cans, the rolling station of can welding machine is designed as top-sucking. Regardless which type of sucking, double sheet detector is equipped on the rounding machine. On each type of soldering machine, the water cooling system is flexible for universal welding roller or mercury free welding roller. And the lower arm of canbody welding machine can be connected to the wet lacquer coating arm or powder coating arm of seam protection system, then the can body welding line is continuously and automatically. For the tin can welding line, it can be connected to the sheet slitter by transfer. For different sizes of metal cans, our tin can welder is equipped with quick change calibration tool, and the rollformer is also easy to adjust for curvature, the GW series tin can welding machine made by GR is flexible and reliable.

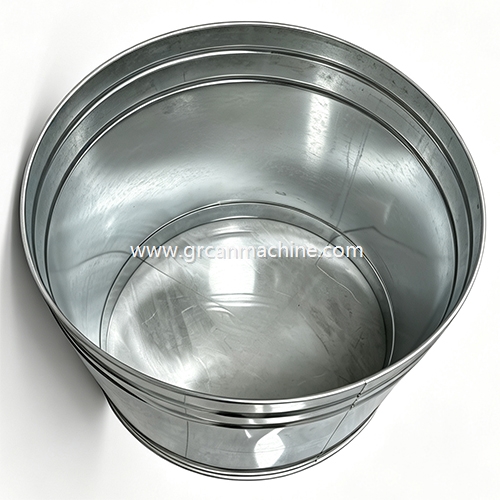

Pailbody welder is suitable for conical pails, cylindrical pails 18 liter cubic cans or steel drums. So the pailbody welding machine is usually named as metal drum welder or drum welding machine. GR Can Making Machine specially produces fully automatic pail body welding machine and back feeding manual pail body welder for many years. Our resistance solder just requires a minimal overlap then weld the seam overlap well. The automatic pail welding machine is designed as top-sucking on roll forming station. Equipped with dual sheet detector, the pail welder will automatically stop when the sucker sucks more than one piece of tinplate sheet. On each type of welding bodymaker, the water cooling system is flexible for universal welding roller or mercury free welding roller. And the lower arm of pailbody solder can be connected to the wet lacquer coating arm or powder coating arm of side seam protection system, then the pail body welding line is continuously and automatically. For the metal pail welding line, it can be connected to the pail bodyformer as complete pail making line. For different sizes of metal containers, our tin pail welder is equipped with quick change calibration crown, and the rollformer is also easy to adjust for curvature, the GW series tin pail welding machine made by GR can be up to max. 60 pails per minute.






The can body welding machine consists of

1 Tinplate roll forming station

The first station of tin can body welder is the tinplate rounding station, it sucks the tinplate sheet and bend it as round.

2 Copper wire system

The resistance welder needs copper wire as media. The special copper wire for can manufacturing should be profiled as flat, then running by the driven system of metal can body welder. After seam welding, the copper wire is cut and recycle by chopper.

3 Welding system

The upper and lower welding roller melt the tinplate and weld it as can body. The welding system use the electric resistance principle to produce high temperature and weld the metal.

4 Water cooling system

During the soldering process, the welding rollers of metal can welder will be hot, so the metal can welding machine need water colling circle to refrigerate the welding system, then the meal can welder can run continuously.

5 Control system

GR welding machine employs international brand electric device and pneumatic device, for the automatic can soldering machine, the touch screen will control the running of the can solder, the can maker just need to set the parameter inside the control panel, then the tin body welder will run continuously.



How does the tin can seam welder work?

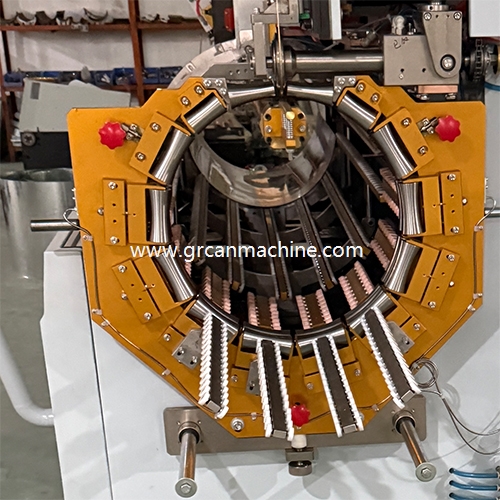

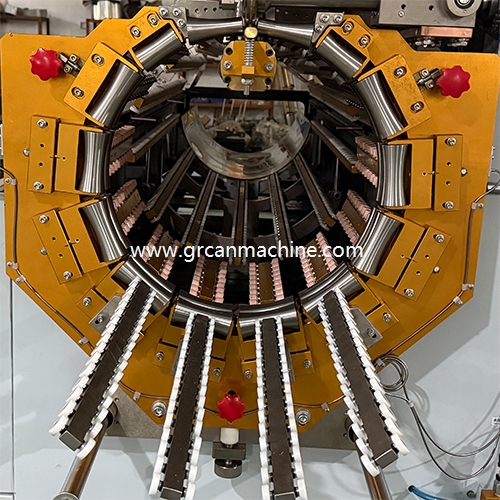

The tin can seam welding machine sucks the tinplate on rolling station, through can conveying table, convey the round tinplate to the upper and lower welding roller, the calibration crown is designed as the can diameter, after welding, the tin container is conveyed to the next station for welded side seam protection.



Classifications

GR produces different types of tin container welder based on the actual requirements of can maker, including back feeding welder, top sucking automatic welder, bottom sucking automatic welder. The tin container welding machine offer is cost effective base on the speed and can size.


suction cup.jpg      top sucking.jpg



Applications

GR tin container body welder is widely applied in can making, paint, canned food, aerosol, chemical, home application device etc. industry.

The tin container body welding machine can be used to produce the products as below:

* general line can

* paint can

* conical pail

* cylinder pail

* steel drum

* aerosol can

* hot water heater

* food can

* edible oil can

* automobile oil can



Customize your can making welder

If you need the can making seam welder, we need to know about your detailed requirement.

1 Inside diameter and sheet thickness of your product

2 Height of your product

3 Production speed of your plan

4 The contained things packaged by the container
